ULX3S JTAG Connection with ft232r

Cross referenced with:

https://bugs.libre-soc.org/show_bug.cgi?id=517

http://lists.libre-soc.org/pipermail/libre-soc-dev/2020-October/000873.html

https://www.amazon.co.uk/DSD-TECH-adapter-FT232RL-Compatible/dp/B07BBPX8B8/ref=sr_1_11?dchild=1&keywords=ft232&qid=1632498288&s=amazon-devices&sr=1-11

https://www.amazon.co.uk/Elegoo-120pcs-Multicolored-Breadboard-arduino-colorful/dp/B01EV70C78/ref=asc_df_B01EV70C78/?tag=googshopuk-21&linkCode=df0&hvadid=310773493424&hvpos=&hvnetw=g&hvrand=6539073631118556110&hvpone=&hvptwo=&hvqmt=&hvdev=m&hvdvcmdl=&hvlocint=&hvlocphy=1006886&hvtargid=pla-362913641420&psc=1

Original Instructions

See https://bugs.libre-soc.org/show_bug.cgi?id=517#c0

Checklist based on above

  • For god's sake make sure you get this right, TRIPLE check everything.

  • DO make sure to only drive an input as an input, and to only drive an output as an output.

  • DO make sure to only wire up 3.3V to 3.3V and to only wire up GND to GND with the jumper-cables.

  • DO make sure that before even thinking of uploading to and powering up the FPGA that everything has been THOROUGHLY triple-checked.

If you violate any of the above stated hard-and-fast rules you will end up learning the hard way by DESTROYING the FPGA.

To start we have to ensure we have a safe set up.

Checklist Step
Ensure power is disconnected from FPGA
Ensure ft232r USB is disconnected
Ensure FPGA USB is disconnected

Now lets review all of the relevant material on this page before we begin the wiring process.

Checklist Step
Review the ft232r Connector diagram and table
Review the connections table for your model of fpga
Ensure the orientation of the FPGA and ft232r match that of the images and diagrams on this page

Next we will wire up the ft232r and our FPGA in three separate stages.

  • First we will attach one end of a MALE-TO-MALE (MTM) jumper cable to each necessary female header pin-hole on the ft232f.

  • Then we will attach one end of a FEMALE-TO-FEMALE (FTF) cable to each male header pin on the FPGA.

  • Finally, we will connect the wires from the ft232r to the wires from the FPGA by matching the colours of the wires.

This way you do not lose the connections when you want to disconnect and store the two devices. We are using FEMALE-TO-FEMALE jumper cables on the male header pins of the FPGA so that the wires do not randomly damage the bare PCB due to a short.

We will wire each of the pins on the the ft232r according to the diagrams, tables, and images on this page.

Action Colour Pin Name
Attach MTM Black GND
Attach MTM Brown TMS
Attach MTM Red VCC
Attach MTM Orange TCK
Attach MTM Yellow TDI
Attach MTM Green TDO

Next, we will wire each of the pins on the the FPGA according to the diagrams, tables, and images on this page.

Follow this section if you have the ULX3S FPGA:

Action Colour Pin # Pin Name
Attach FTF Red 2 VREF
Attach FTF Black 4 GND
Attach FTF Yellow 5 TDI
Attach FTF Brown 6 TMS
Attach FTF Orange 7 TCK
Attach FTF Green 8 TDO

Follow this section if you have the Versa ECP5 FPGA:

Action Colour X3 Pin # Pin Name
Attach FTF Red 39 VREF
Attach FTF Black 1 GND
Attach FTF Yellow 4 TDI
Attach FTF Brown 5 TMS
Attach FTF Orange 6 TCK
Attach FTF Green 7 TDO

Final steps for both FPGA boards:

Checklist Step
Check each jumper wire connection between the corresponding pins on the FPGA and the ft232r THREE times
lckl check for ground loops?

Finally, we will connect the jumper cables of the same colour from ft232r and the FPGA.

Checklist Step
Attach the ends of the RED jumper cables
Attach the ends of the BLACK jumper cables
Attach the ends of the YELLOW jumper cables
Attach the ends of the BROWN jumper cables
Attach the ends of the ORANGE jumper cables
Attach the ends of the GREEN jumper cables

lckl if both the micro-usb cable and the ft232r GND and VCC wires are connected to the fpga will this result in volatage fighting where the fpga will be damaged?

Finally, plug in the USB end of the USB-to-MicroUSB cable that is plugged into the ft232r into your computer. Begin testing the SOC on the FPGA (instructions to follow).

Connecting the dots:

Accurate render of board for reference https://github.com/emard/ulx3s/blob/master/pic/ulx3st.jpg

Litex platform file https://github.com/litex-hub/litex-boards/blob/master/litex_boards/platforms/ulx3s.py

("gpio", 0,
    Subsignal"p", Pins("B11")),
    Subsignal("n", Pins("C11")),
    IOStandard("LVCMOS33")
),
("gpio", 1,
    Subsignal("p", Pins("A10")),
    Subsignal("n", Pins("A11")),
    IOStandard("LVCMOS33")
),

ULX3S FPGA constraints file https://github.com/emard/ulx3s/blob/master/doc/constraints/ulx3s_v20.lpf#L341-342

LOCATE COMP "gp[0]" SITE "B11"; # J1_5+  GP0 PCLK
LOCATE COMP "gn[0]" SITE "C11"; # J1_5-  GN0 PCLK
LOCATE COMP "gp[1]" SITE "A10"; # J1_7+  GP1 PCLK
LOCATE COMP "gn[1]" SITE "A11"; # J1_7-  GN1 PCLK

ULX3S FPGA Schematic https://github.com/emard/ulx3s/blob/master/doc/schematics_v308.pdf

J1 J2 PIN number 1-40 is for FEMALE 90° ANGLED header.
For MALE VERTICAL header, SWAP EVEN and ODD pin numbers.

                    J1

 Label  [GP{x}]|PCB pin label|[GN{x}] Label
           (Pin count +)(Pin count -)
_________________V__________V________________
 IO VOLT REF 3V3 2  |3.3V|  1  NOT CONNECTED
           [GND] 4  | -| |  3  NOT CONNECTED
PCLKT0_0   [GP0] 6  |  0 |  5  [GN0] PCLKC0_0
PCLKT0_1   [GP1] 8  |  1 |  7  [GN1] PCLKC0_1


GP,GN 0-7 single-ended connected to Bank0
GP,GN 8-13 differential bidirectional connected to BANK7

Connecting all the dots:

Board pin # (count) | Board pin label # | FPGA IO PAD | GPIO # (n/p) |   Label  |
      5 (J1_5-)     |         0         |      C11    |    gn[0]     | PCLKC0_0 |
      6 (J1_5+)     |         0         |      B11    |    gp[0]     | PCLKT0_0 |
      7 (J1_7-)     |         1         |      A11    |    gn[1]     | PCLKC0_1 |
      8 (J1_7+)     |         1         |      A10    |    gp[1]     | PCLKT0_1 |

As noted in the schematic pins GP,GN 0-7 are single ended non-differential pairs, whereas pins GP,GN 8-13 I haven't mapped out here as they are bidirectional differential pairs.

List of connections (default physical pin numbers for FT232R in 28-pin SSOP package):

    - RXD(5) - TDI
    - TXD(1) - TCK
    - RTS(3) - TDO
    - CTS(11) - TMS
    - DTR(2) - TRST
    - DCD(10) - SRST
/**
 * FT232R GPIO bit number to RS232 name
 */
#define FT232R_BIT_COUNT 8
static char *ft232r_bit_name_array[FT232R_BIT_COUNT] = {
    "TXD", /* 0: pin 1  TCK output */
    "RXD", /* 1: pin 5  TDI output */
    "RTS", /* 2: pin 3  TDO input */
    "CTS", /* 3: pin 11 TMS output */
    "DTR", /* 4: pin 2  /TRST output */
    "DSR", /* 5: pin 9  unused */
    "DCD", /* 6: pin 10 /SYSRST output */
    "RI"   /* 7: pin 6  unused */
};

static int tck_gpio; /* initialized to 0 by default */
static int tdi_gpio = 1;
static int tdo_gpio = 2;
static int tms_gpio = 3;
static int ntrst_gpio = 4;
static int nsysrst_gpio = 6;

ft232 pin and wire colour table converted to jtag signal names:

|-------|------|--------|----------| | Pin # | JTAG | FT232 | Colour | |-------|------|--------|----------| | 1 | VCC | VCC | Red | | 2 | GND | GND | Black | | 3 | TCK | TXD | White | | 4 | TDI | RXD | Green | | 5 | TDO | RTS | Yellow | | 6 | TMS | CTS | Blue | |-------|------|--------|----------| ``` Proposed FPGA External Pin to ft232r JTAG pin connections:

   all pin #'s have headers pins on the fpga unless denoted as (no header)
 ______________________________________________________________________________
|             | board |             |             |                |           |
|             | label |             |             | ft232r   JTAG  |           |
|    pin #    |   #   | FPGA IO PAD |GPIO # (n/p) | Pin #  (Signal)|Wire Colour|
|_____________|_______|_____________|_____________|________________|___________|
|1 (no header)|  3.3v |NOT CONNECTED|NOT CONNECTED| NOT CONNECTED  |    NOT    |
|2            |  3.3v | IO VOLT REF | IO VOLT REF |    3 (VCC)     |    Red    |
|3 (no header)|-|(GND)|NOT CONNECTED|NOT CONNECTED| NOT CONNECTED  |    NOT    |
|4            |-|(GND)|    NONE     |     GND     |    1 (GND)     |   Black   |
|5 (J1_5-)    |   0   |     C11     |    gn[0]    |    5 (TDI)     |   Green   |
|6 (J1_5+)    |   0   |     B11     |    gp[0]    |    2 (TMS)     |   Blue    |
|7 (J1_7-)    |   1   |     A11     |    gn[1]    |    4 (TCK)     |   White   |
|8 (J1_7+)    |   1   |     A10     |    gp[1]    |    6 (TDO)     |   Yellow  |
|_____________|_______|_____________|_____________|________________|___________|

Complete diagram:

Pins intentionally have no header or are not connected to the ft232 are marked
and therefore have no value are marked with 'NOT'

(ft232r# JTAG) = (ft232r pin #   JTAG signal name)

                             J1
            Wire                             Wire
           Colour [GP{x}]|PCB label|[GN{x}] Colour
(ft232r# JTAG)   (Pin count +)(Pin count -)   (ft232r# JTAG)
 ______________________V__________V_______________________
|                                                         |
|(3 VCC) red    [VREF] 2  |3.3V|  1   NOT   NOT    NOT    |
|(1 GND) black   [GND] 4  | -| |  3   NOT   NOT    NOT    |
|(2 TMS) Blue    [GP0] 6  |  0 |  5  [GN0] Green  (5 TDI) |
|(6 TDO) Yellow  [GP1] 8  |  1 |  7  [GN1] White  (4 TCK) |
|_________________________________________________________|

Images of wires on ulx3s FPGA and on ft232r (lkcl to update images for Versa ECP5)

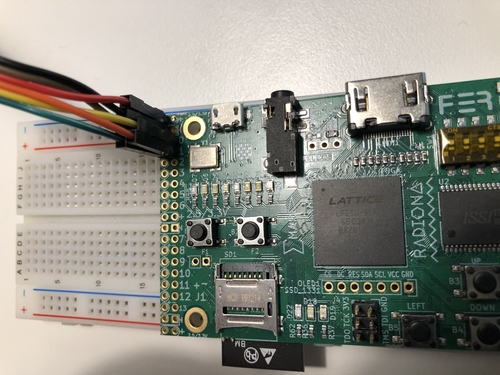

Image of JTAG jumper wire connections on ULX3S FPGA side:

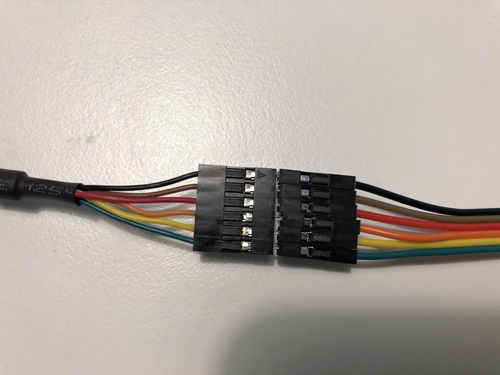

Image of JTAG jumper wire connections on ft232r side:

Colour markings on ft232r side:

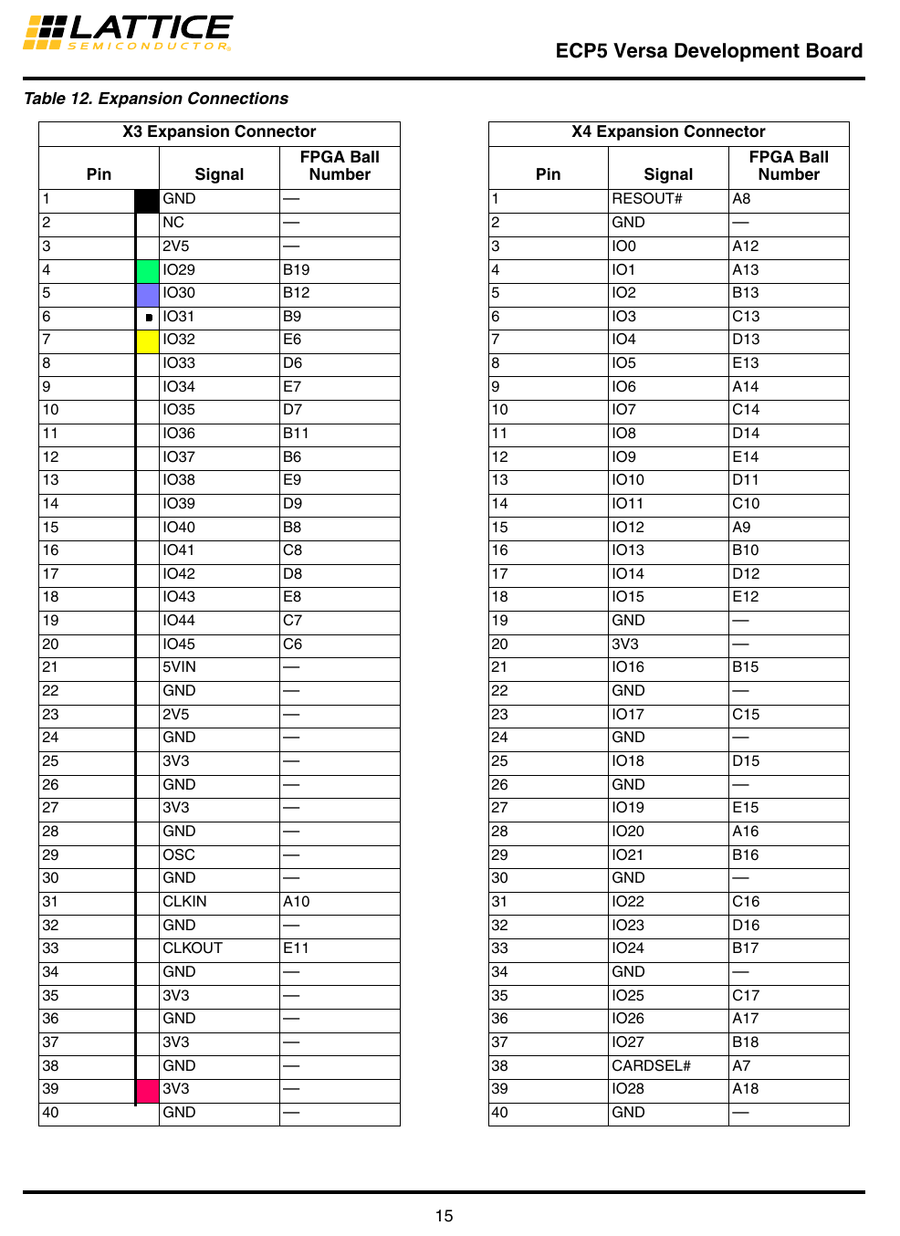

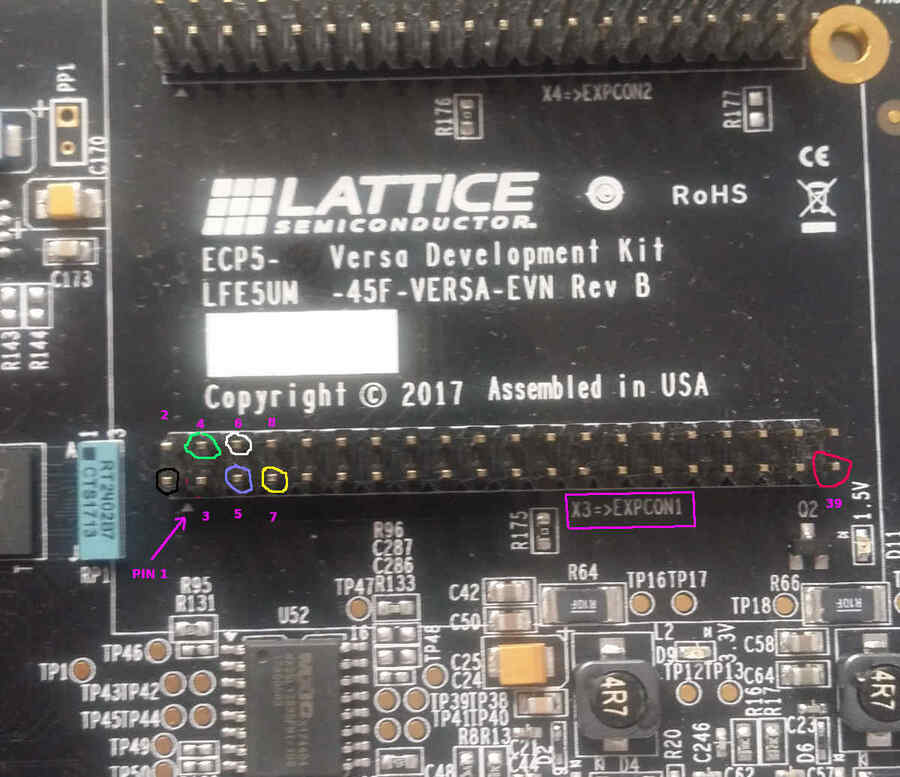

VERSA ECP5 Connections

Table of connections:

X3 pin # FPGA IO PAD Function FT232 Wire Colour
39 +3.3V 3.3V supply (VCC) VREF Red
1 GND GND (GND) GND Black
4 IO29 B19 (TDI) RXD Green
5 IO30 B12 (TMS) CTS Blue
6 IO31 B9 (TCK) TXD White
7 IO32 E6 (TDO) RTS Yellow
